Wood-gas drive











Imbert

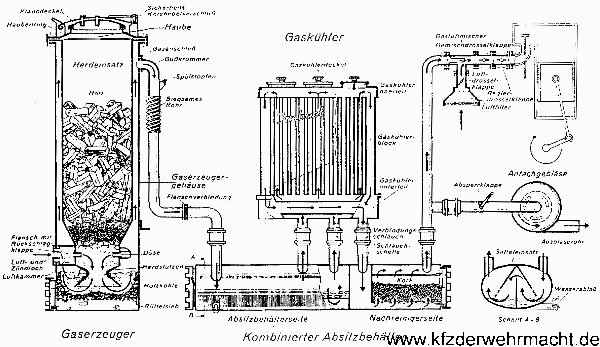

This is a schematically illustration of the wood gas drive of the company Imbert. The three main components gas generator (Gaserzeuger), gas cooler, (Gaskühler) and the precipitating tank (Absitzbehälter) can be seen well. Besides wood, charcoal, brown coal, turf and anthracite could be used as solid fuel, too. About 200,000 wood gas generators were made until the end of WW 2. (Illustration out of: Lastkraftwagen der Wehrmacht, source: Imbert)











Mercedes_Benz_L_3000_S_mit_Holzgasgenerator_PzAA10_10_PzGrenDiv





The technology of the wood gas generator may appear somewhat strangely to the viewer of today. Handling was lengthy and dirty. But it helped to save important resources. Vehicles equipped with a wood gas generator were identifiable by its additional gas radiator.











Mercedes_Benz_L_3000_S_mit_Holzgasgenerator





Vehicles with wood gas generator were used almost exclusively in the private sector and in the homeland theatre of war. This Mercedes Benz L 3000 S with wood gas generator was in use on a military training area. Note the gas generator behind the driver’s cab which was similar to a bathing furnace.











Opel_Holzgas





Although the vehicles with wood gas generator should not be used by frontline troops, this photo of an Opel Admiral with wood gas generator of a signals battalion seems to prove the opposite.











Opel_Blitz_3t_S_Holzgasgenerator





On this photo one can see the refilling procedure of the wood gas generator. The loss of power during generator operation was specified as 20%.











- - - - - - - - - - - - - - -
