Anhänger (1 achs.) für schweren Ladungswerfer
|
|
|
|
|
|
|
|
To move the 38 cm schweren Ladungswerfer - 38 cm heavy spigot mortar - which had a combat weight of nearly 1,600 kg, it had to be disassembled into three loads. In the illustrated photo, one can see Anhänger 1 - trailer 1 - with the bottom gun carriage. (Image from D 526/1)
|
|
|
|
|
|
|
|
|
|
|
|

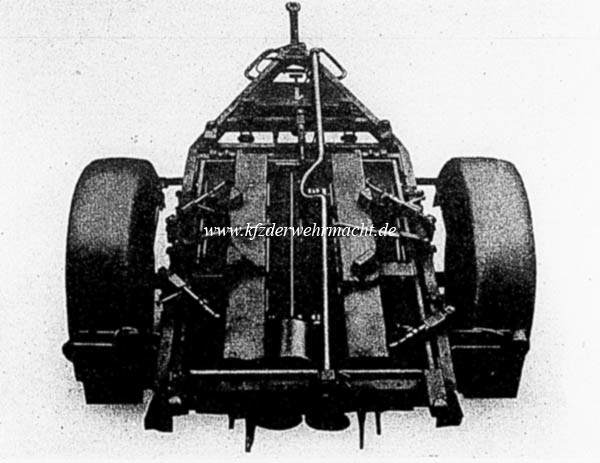

The Anhänger 1 without equipment and ammunition. (Image from D 526/1)
|
|
|
|
|
|
|
|
|
|
|
|
The Anhänger 1 with loaded ammunition. (Image from D 526/1)
|
|
|
|
|
|
|
|
|
|
|
|
Further parts of the bottom gun carriage were transported with Anhänger 2. (Image from D 526/1)
|
|
|
|
|
|
|
|
|
|
|
|
The Anhänger 2 with loaded ammunition. (Image from D 526/1)
|
|
|
|
|
|
|
|
|
|
|
|
The three part upper gun carriage was transported with Anhänger 3. All three trailers were based on the Anhängerfahrgestell (1 achs.) 900 kg. (Image from D 526/1)
|
|
|
|
|
|
|
|
|
|
|
|

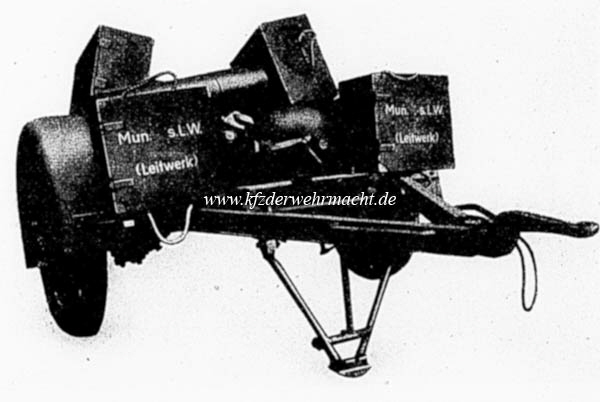

The Anhänger 3 with loaded ammunition. (Image from D 526/1)
|
|
|
|
|
|
|
|
- - - - - - - - - - - - - - -
|
|
|
|
|
|
|
|
