Nebelkraftwagen (Sd. Kfz. 11/1)
mit Fahrgestell des le. Zgkw. 3t

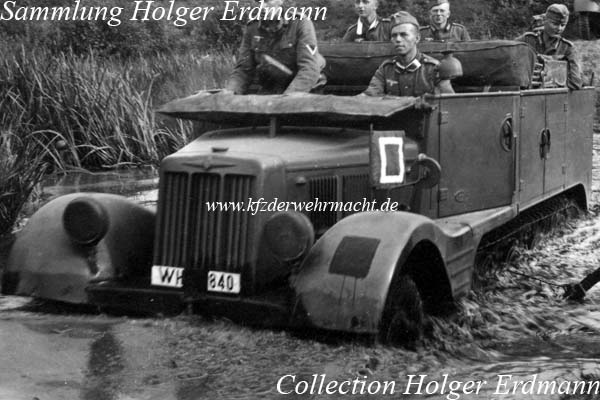

SdKfz_11_1_auf_Übungsgelände





The rear superstructure of the Nebelkraftwagen (Sd. Kfz. 11/1) was more angular than on the standard model. It used the whole width of the vehicle. The spare wheel was stored between the left and the right ammunition boxes.

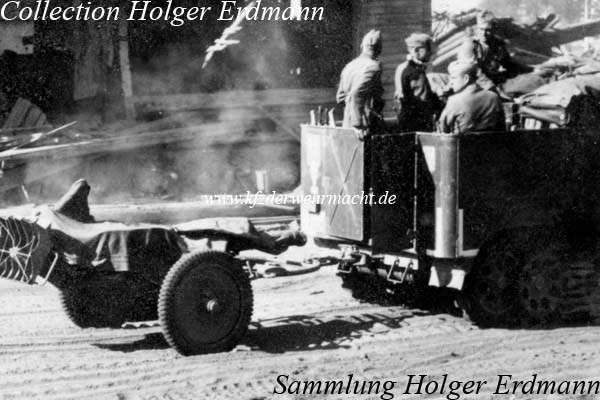

SdKfz_11_1_Nbkw_&_10cm_NbW_40_in_Fahrt





Note the stiffening ribs in the rear doors of the Borgward production that are not found on late Sd. Kfz. 11/1’s made by Hanomag. The Sd. Kfz. 11/1 was used as towing vehicle for the 10 cm Nebelwerfer 40. Later, the Sd. Kfz. 11/1 was also used as towing vehicle for other Nebelwerfer.

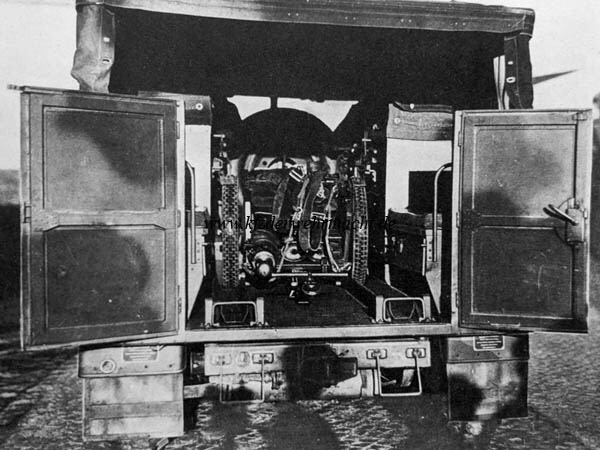

SdKfz_11_1_innen_HvH





The 10 cm Nebelwerfer 35 could be carried along inside on rails. Also the appropriate Werferkarren für 10 cm Nebelwerfer (Nbf. 1) and Munitionskarren für 10 cm Nebelwerfer (Nbf. 1/1) were carried along inside. (Image from Handbuch für Heerestaktik Band 2)











- - - - - - - - - - - - - - -
