Flugbetriebsstoffkesselkraftwagen (Kfz. 384) mit Fahrgestell des m. gl. Lkw. (o)
|
|
|
|
|
|
The Flugbetriebsstoffkesselkraftwagen (Kfz. 384) mit Fahrgestell des m. gl. Lkw. (o) - aircraft fuel tank motor vehicle (Kfz. 384) with chassis of the medium cross-country lorry (commercial) - had a fuel capacity of 3,500 litres. This version was exclusively made based on the chassis of the Mercedes-Benz LG 3000. At first, 45 vehicles of the series 3T, which is identifiable by the upright rear of the superstructure, were manufactured.
|
|
|
|
|
|
|
|
|

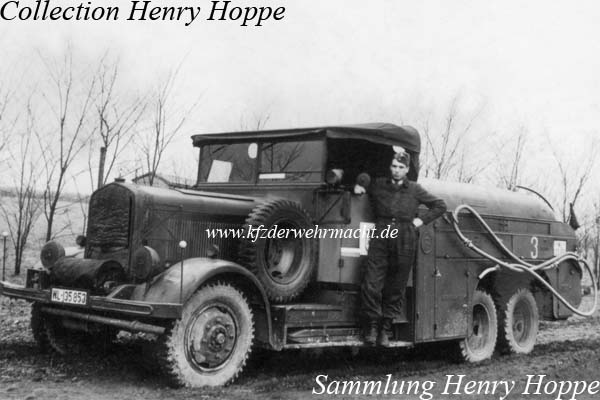

These vehicles were followed by 56 exemplars of the series 17T and 189 vehicles of the series 27T. These versions had a longer but more flat tank superstructure. For reasons of safety, the exhaust pipe of these tank lorries was relocated under the bumper.
|
|
|
|
|
|
|
|
|

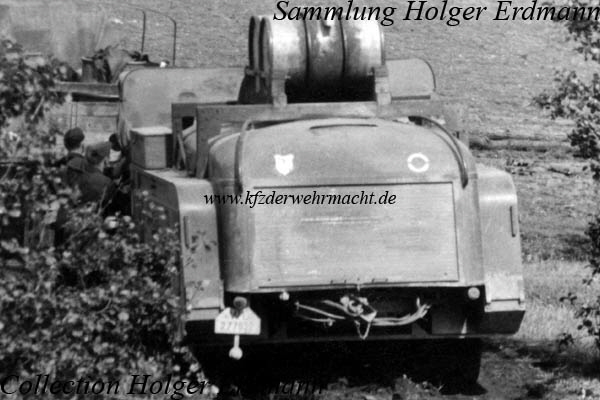

A Flugbetriebsstoffkesselkraftwagen (Kfz. 384) of the series 17T or series 27T seen from behind. Behind the shutter, a Ventilblock Form A - valve block form A - (17T) resepctively Form B - form B - (27T) was installed.
|
|
|
|
|
|
- - - - - - - - - - - - - - -
|
|
|
|
|
|
